Harness the Sun: Understanding How Solar Hot Water Heaters Work

Hey folks, Hank here. As many of you know, I want to make my home and DIY projects more eco-friendly. So today, I want to dive into one technology I’ve become fascinated with – solar hot water heating systems. These nifty devices allow you to harness the sun’s power to heat water for your home, reducing energy bills and carbon footprint. Stick with me as I break down the basics of how solar water heaters work!

Why Should We Care About Solar Energy?

Before jumping into the details, let’s take a step back and discuss why renewable energy solutions like solar are so important. Here are a few reasons why solar power has been gaining popularity:

  • Sustainability – Solar energy relies on the infinite power of the sun, reducing our dependence on finite fossil fuels that pollute the environment. By switching to solar, we can help preserve the planet for future generations.
  • Energy Independence – Generating your solar power right at home reduces your reliance on the utility grid. This gives homeowners more control over their energy use and bills.
  • Lower Costs – The costs of solar power systems have dropped dramatically in recent years. Many homeowners see a return on investment in less than ten years.
  • Improved Technology – Advancements in solar technology have made systems much more efficient than ever. New solar solutions are continually being developed.

Solar provides a clean, renewable way to heat water while saving green and gaining more energy independence. It seems like a win-win to me!

How Do Solar Hot Water Systems Work

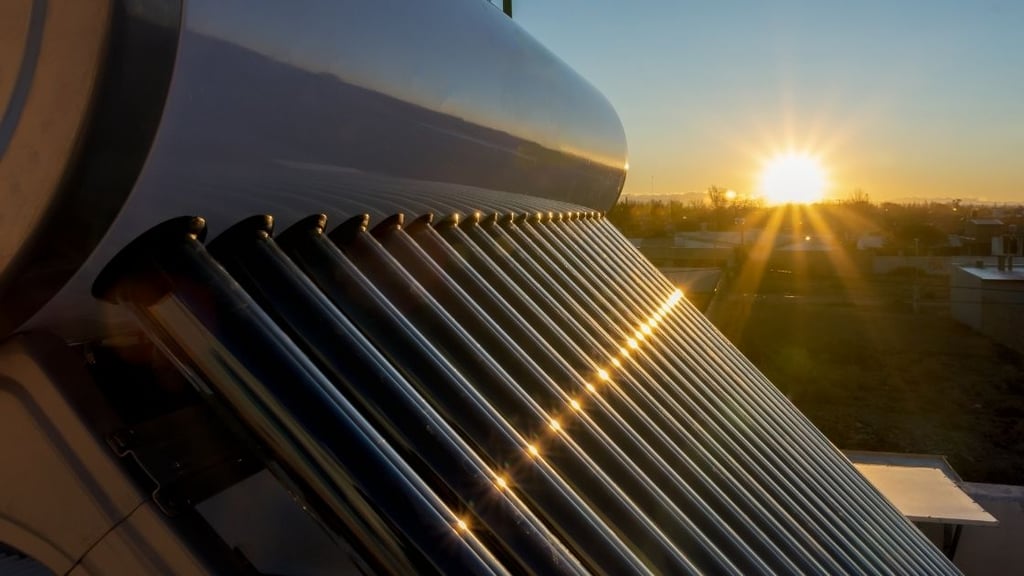

How Do Solar Hot Water Systems Work

What Is Solar Thermal Energy?

Alright, it’s time for Solar Heating 101. The sun’s rays contain tons of energy from electromagnetic radiation. When captured and converted into heat, this is called solar thermal energy. Let’s break down the main types:

Low-Temperature Collectors: Used to heat pools or provide space heating.

Medium Temperature Collectors: Used for residential hot water and space heating applications. These are the most common.

High-Temperature Collectors: Generate steam to produce electricity. They use mirrors or lenses to concentrate the sun’s energy.

Now, the amount of heat delivered depends on how much radiation is available. For instance, tropical regions see much higher sunlight levels than colder climates. But even at the same latitude, the available sunlight can vary a lot depending on the typical weather in the location.

See also  Harnessing the Sun: How Rooftop Solar Panels Work and Benefit You

The key is capturing those precious solar rays and minimizing any heat loss along the way.

What Are Solar Hot Water Heaters?

Alright, it’s time to define our star of the show – the solar water heater! These systems use solar thermal collectors to absorb heat from the sun. This energy is transferred to water and then stored in an insulated tank for use in your home.

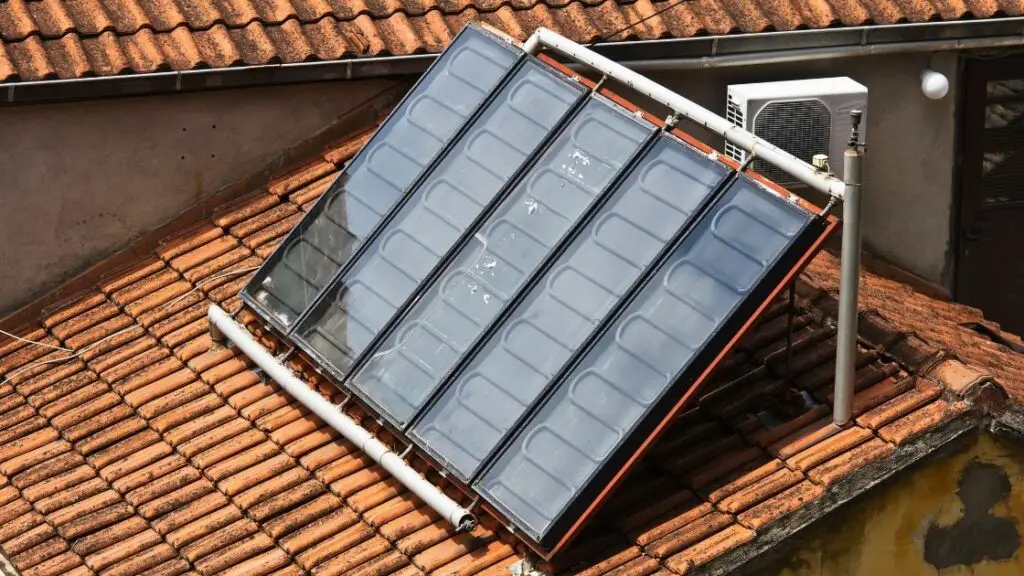

Flat Plate Solar Hot Water System

Let’s look at the key components that make these systems work:

Solar Collectors

The solar collectors act like a heat exchanger. They have an absorber surface that soaks up the thermal radiation from the sun. The most common types are:

  • Flat Plate Collectors: Thin boxes with a dark absorber plate inside and a clear glass or plastic cover.
  • Evacuated Tube Collectors: Cylindrical glass tubes containing absorber fins inside a vacuum-sealed environment.
  • Integral Collector Storage (ICS): Batch systems where the water tank is the collector. Typical for thermosiphon systems.

Heat Transfer Fluids

These fluids transport the heat absorbed by the collectors to the insulated storage tank. In warm climates, potable water can directly be used. In freezing conditions, non-toxic glycols or oils prevent ice damage.

Storage Tanks

These heavily insulated tanks store the heated water for use on demand. Some systems have one combined solar storage tank. Others use a conventional water heater preheated by a separate solar tank.

Pumps & Controllers

Pumps actively circulate fluids between the collectors and storage tank. Controllers monitor temperatures and determine when the pumps need to turn on.

Proper insulation is critical for minimizing wasted heat as the water moves from collectors to tanks. Now, let’s look at the two main types of solar water heating systems.

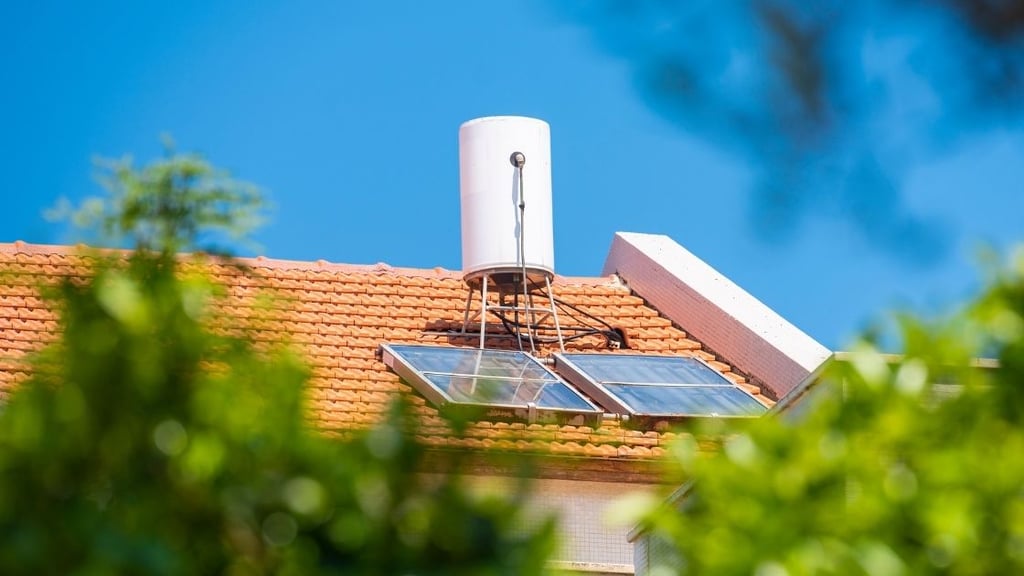

Integral Collector Storage

Active vs. Passive Systems

Active Systems: Rely on electric pumps and controllers to circulate the heat transfer fluids. This allows flexible component placement but increases complexity. Glycol systems are standard in cold regions.

Passive Systems: Use natural convection instead of mechanical pumps. This makes them more straightforward and cheaper but requires thoughtful component placement. Two types of passive systems are:

  • Thermosiphon: Heated water naturally rises from collector to tank while more extraordinary water sinks in a closed loop.
  • ICS (Integral Collector Storage): The tank acts as both collector and storage. Typical batch water heater design.

Active and passive systems can be direct (using potable water) or indirect (using heat exchangers and glycol). Now that we’ve covered the essential components let’s get into the science behind these nifty systems.

The Science Behind Solar Hot Water Heaters

While solar water heating may seem straightforward, there are some solid thermodynamics and heat transfer principles at work under the hood. Let’s break it down:

Harnessing the Sun’s Energy

According to the laws of thermodynamics, energy can’t be created or destroyed, only changed from one form into another. In our case, the electromagnetic radiation from the sun gets converted into valuable heat energy.

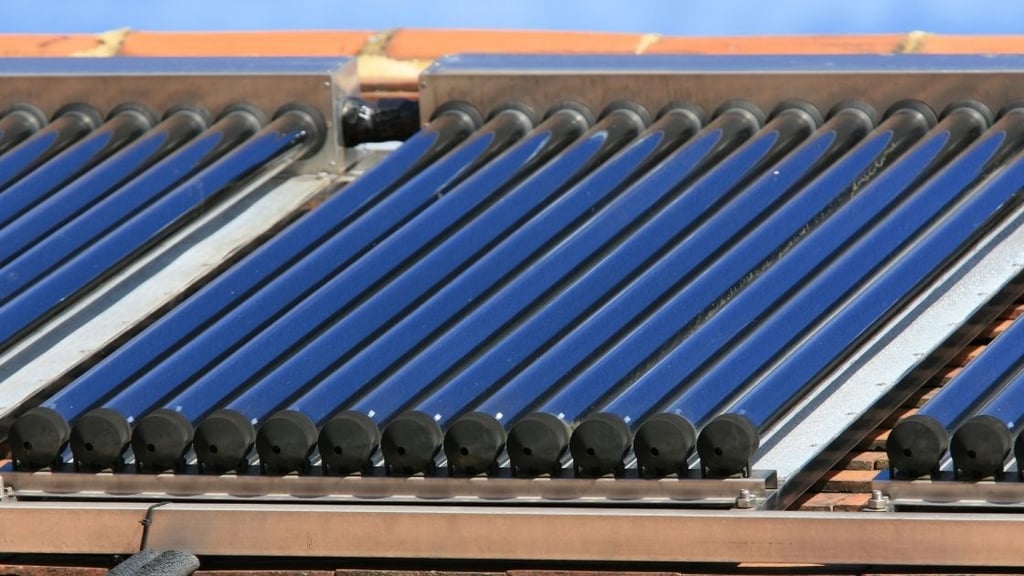

Evacuated Tube Solar Hot Water System

This occurs through three types of heat transfer working in harmony:

Conduction: Heat transfer through solid materials like the absorber plate.

Convection: Heat transfer via flowing fluids, like our heat transfer liquid.

Radiation: Initial energy from the sun’s rays absorbed by the collectors.

The Greenhouse Effect

Ever wonder why greenhouse gases like CO2 cause global warming? Same idea within solar collectors!

See also  The Truth About Solar Pool Covers: Do They Really Work?

Sunlight passes through the clear glazing covering the absorber plate. This energy gets trapped inside by the glazing and cannot easily escape. Hence, the absorber heats up rapidly from the greenhouse effect.

Natural Convection Flow

In thermosiphon systems, heated water naturally rises to the tank while cooler water sinks to the bottom of the collector. This convection current circulates the water without any mechanical pumps.

Pretty cool. With these fundamental concepts, we can now follow the entire process step-by-step.

How Do Solar Hot Water Heaters Work?

Let’s trace the journey of a photon from the sun as it gets turned into usable heat for your morning shower:

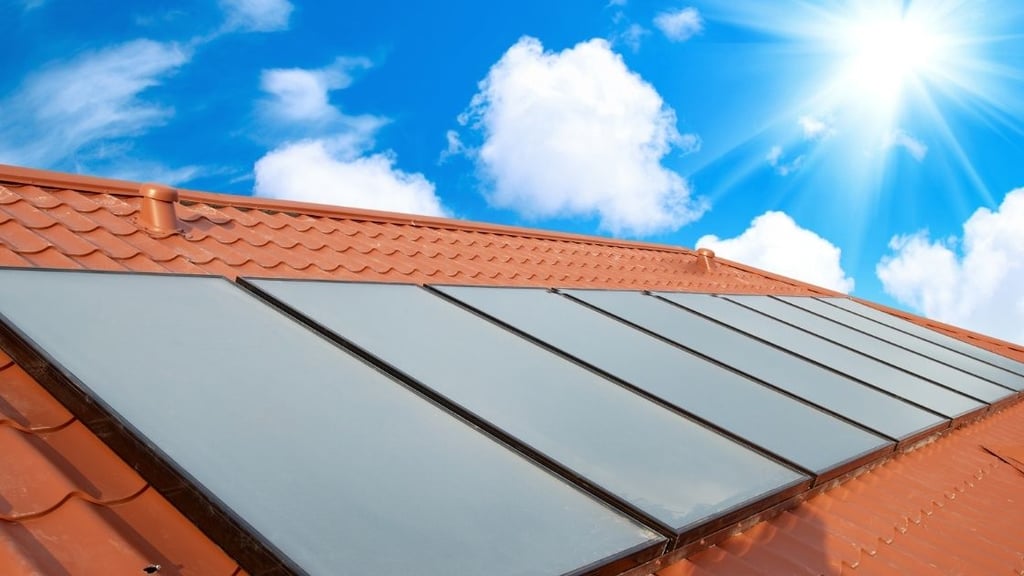

Solar Hot Water Systems

Step 1 – Absorption of Solar Radiation

The sun’s rays strike the surface of the solar thermal collectors. The absorber plate converts this light energy into heat through radiation absorption. Minimum reflection is critical for good efficiency.

Step 2 – Heat Transfer to Fluid

As the absorber heats up, conduction transfers thermal energy to the heat transfer fluid passing through the collector. Proper fluid choice ensures good heat capacity and minimal freezing risk.

Step 3 – Circulation of Heated Fluid

The hot fluid exiting the collector flows to the insulated storage tank. This occurs either via natural convection (thermosiphon) or an electric pump (active system).

Step 4 – Heat Exchange

Within the storage tank, a heat exchanger transfers heat from the hot fluid to the potable water supply. This keeps drinking water isolated from the internal heat transfer fluid.

Step 5 – Integration with Existing Heater

Most systems integrate with a conventional gas or electric heater as a backup for increased demand. Solar preheats the water first before auxiliary heating kicks in.

And voila! We’ve successfully harvested free heat from the sun to warm up your water. That’s the beauty of solar thermal systems in a nutshell. Next, let’s look at some of the factors impacting efficiency.

What Affects Solar Hot Water Heater Efficiency

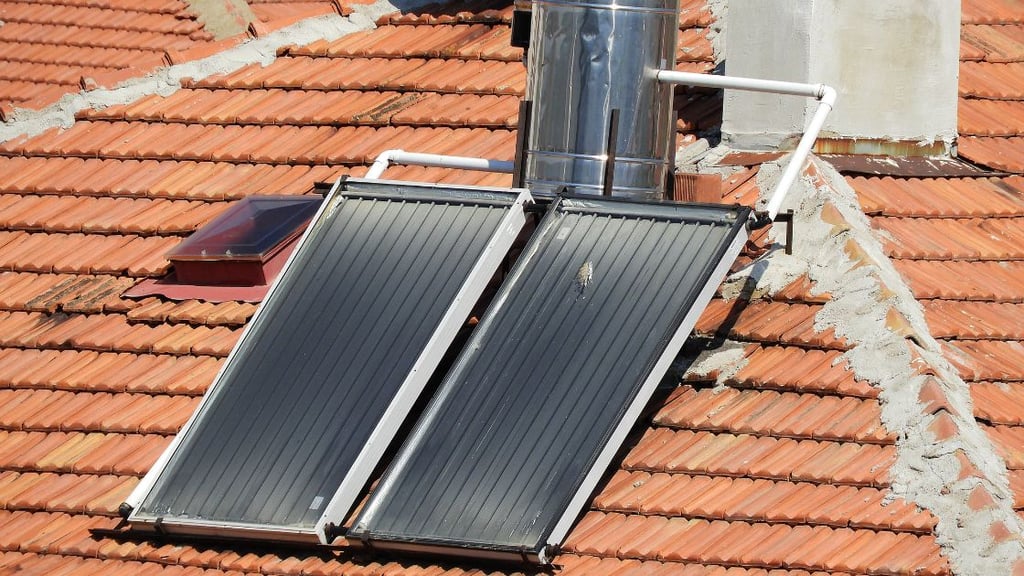

What Affects Solar Hot Water Heater Efficiency?

As with any solar technology, there are a few key variables that determine how efficiently these systems perform:

Climate and Geography

Sunnier locations will always yield higher solar gains. The Southwest USA is ideal, while the Pacific Northwest can prove challenging. Similarly, winter efficiency suffers in colder climates.

Collector Orientation and Tilt

Facing collectors due south is optimal for the Northern Hemisphere. However, angles up to 45° east or west work fine, too. Tilting collectors at latitude + 15° improves winter solar collection.

System Sizing and Storage

Oversizing the system won’t improve efficiency since the tank limits heat capture. For active systems, use a 1.5 gallons per sq ft collector ratio. Passive ICS systems need a proper tank balance to the collector surface.

Proper installation and preventive maintenance are also critical for keeping these systems running at peak performance over their 25+ year lifetime.

The Pros and Cons of Solar Water Heating

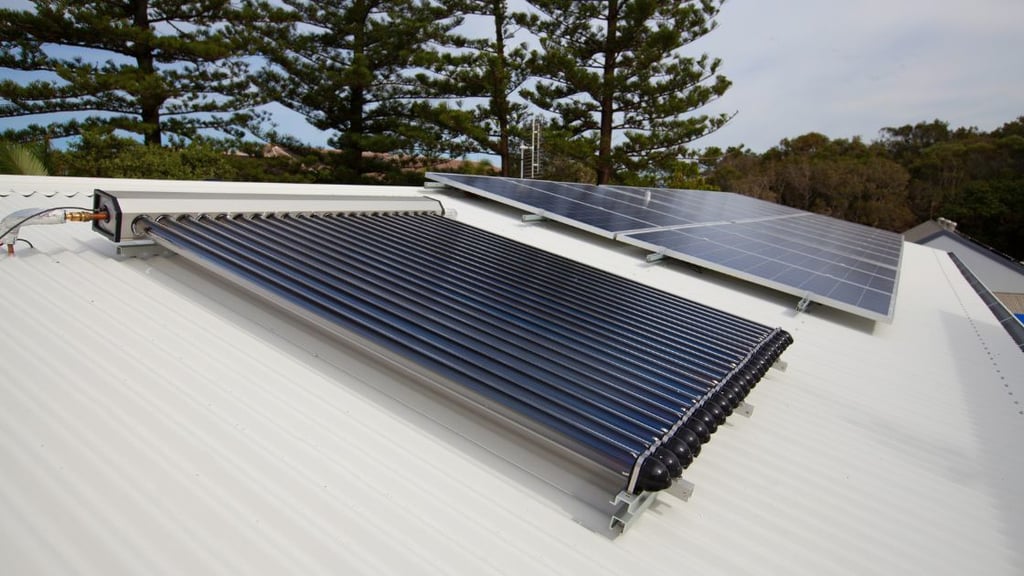

The Pros and Cons of Solar Water Heating

While very appealing, solar hot water does come with some disadvantages as well. Let’s quickly weigh the pros against the cons:

Advantages

  • Dramatically lower electricity or gas bills
  • Reduced carbon footprint from renewable energy
  • Minimal operational costs and maintenance
  • Extended system life, typically 25+ years
  • Available tax credits and incentive rebates

Disadvantages

  • High upfront installation cost
  • Auxiliary heating is still required in cold or cloudy conditions
  • Potential for leaks and freezing without proper maintenance
  • Complexity of active pumped systems
  • Roof orientation and space requirements
See also  Warmth and Savings: Discover Why Attic Insulation is a Must-Have

So, while not a flawless solution, the benefits outweigh the drawbacks in suitable homes. Next, let’s look at some real-world applications.

Residential Applications

The most common use for solar water heating is in single-family homes. Here are some tips for residential installations:

  • Determine hot water demand and choose system type/size accordingly.
  • Consider passive ICS for warm climates to reduce complexity and costs.
  • Install both solar storage tank and backup conventional heater side-by-side.
  • Ensure proper orientation and tilt for collectors on a roof or ground mount.
  • Use a heat transfer fluid like glycol for cold regions to prevent freezing.
  • Take advantage of federal or state incentives like renewable energy tax credits.

With thoughtful planning, solar water heating can make perfect sense for eco-conscious households.

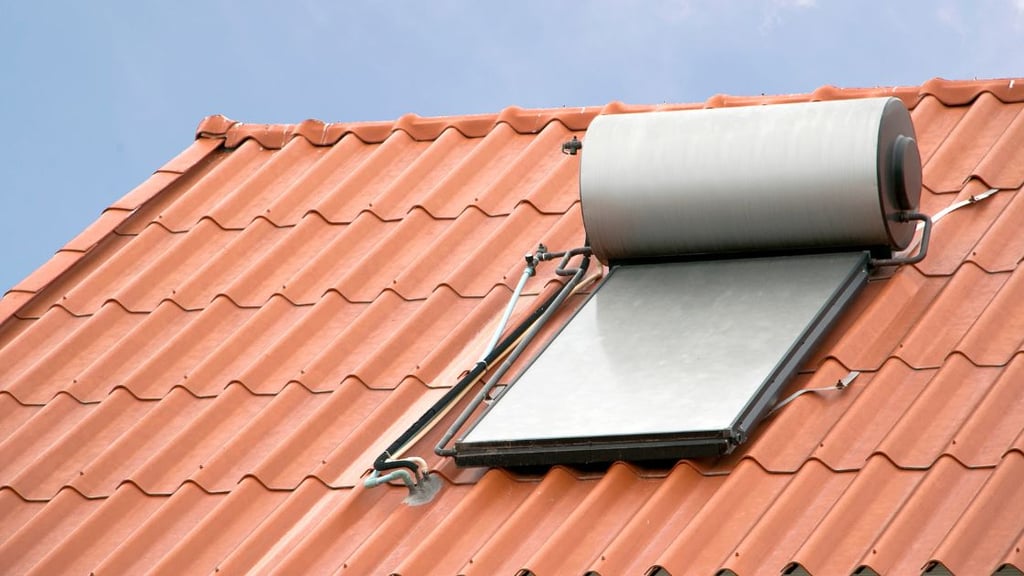

Residential Applications Solar Hot Water Systems

Commercial and Industrial Uses

Beyond residential applications, solar hot water also gets deployed on larger scales:

Commercial Installations

Many businesses, from hotels to gyms, use commercial solar water heating systems to save on energy bills. These systems range in size from primarily residential to large industrial capacity. Some top applications:

  • Hotels for guest rooms, laundry, kitchens, pools
  • Health clubs and gyms for showers, pools, and spas
  • Restaurants and food processing for sanitation and washing
  • Office buildings for restrooms and cafeterias

Industrial Process Heat

Solar collectors can provide clean process heat for large-scale manufacturing. Some examples include:

  • Food processing plants for equipment sterilization
  • Chemical and pharmaceutical processes requiring hot water or steam
  • Paper and textile production requiring heat for pulping or dyeing
  • Power plants for preheating boiler water before steam generation

This is just a tiny sampling of the potential. Creative system sizing and storage can make solar feasible for ample hot water demands.

The Future of Solar Water Heating

As you can probably tell, I’m optimistic about the bright future of solar hot water systems. Here are a few developing trends worth watching:

Technology Advancements

I’m excited to see new materials and coatings that improve collector absorption and advances in heat storage. More efficient systems mean faster paybacks.

Expanded Incentives

With solar hot water being a relatively unknown technology, increased government incentives can help drive adoption by improving economics.

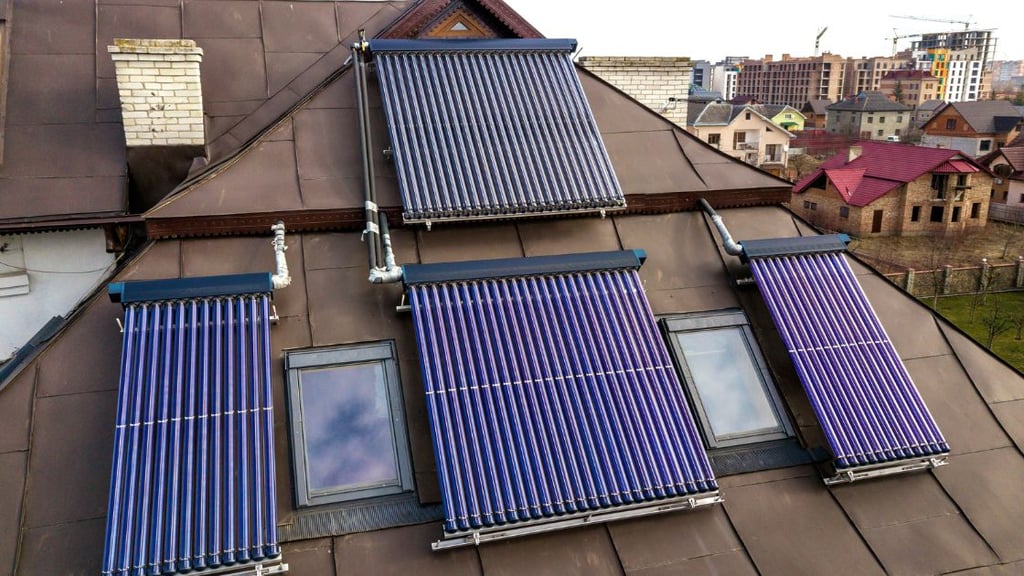

The Future of Solar Water Heating

Green Building Practices

Solar thermal pairs nicely with other efficiency measures like heat pump water heaters or solar PV. Combined systems maximize savings!

Global Developments

Many developing countries are embracing large-scale solar water heating. This helps them expand energy access sustainably.

Wrapping Up

Well, folks, that wraps up this deep dive into solar hot water heating systems. As you can see, this mature renewable technology offers homeowners and businesses the ability to harness the sun’s free thermal energy to cut water heating bills and emissions.

I hope you feel energized and empowered to consider going solar thermal for your home or shop after learning what makes these ingenious systems tick! If you have any other questions, feel free to ask in the comments section below. And make sure to subscribe to my YouTube channel for more of my DIY solar experiments coming soon.
